DNS name tracking with Network Observability

Author(s):

Mehul Modi

Mehul Modi

@memodi

Julien Pinsonneau

Julien Pinsonneau

@jpinsonneau

Network Observability has long had a feature that reports the DNS latencies and response codes for the DNS resolutions in your Kubernetes cluster. DNSTracking feature can be simply enabled in FlowCollector config as below.

spec:
  agent:
    ebpf:
      features:
      - DNSTracking

In the most recent 1.11 release, a major enhancement was added to existing DNSTracking feature to report DNS query names as well without any additional configuration to the FlowCollector.

The current implementation captures DNS latencies, response codes, and query names from DNS response packets. To understand this better, let's examine the structure of a standard DNS response packet:

As you may have guessed DNS query name is being captured from the Question section of a response packet. DNS resolution is the first step for most application network requests in Kubernetes. In this blog, let us demonstrate how having this information could help you troubleshoot configuration issues or could help you identify DNS configuration issues and detect suspicious network activity.

We're running an OpenShift cluster on AWS with a simple test setup: a client pod making requests to an nginx service in a different namespace. The nginx service runs in the server namespace, while the client pod runs in the client namespace; client pod just fetches a fixed object in a loop as below:

 while : ; do
    curl nginx.server.svc:80/data/100K  2>&1 >  /dev/null
    sleep 5
 done

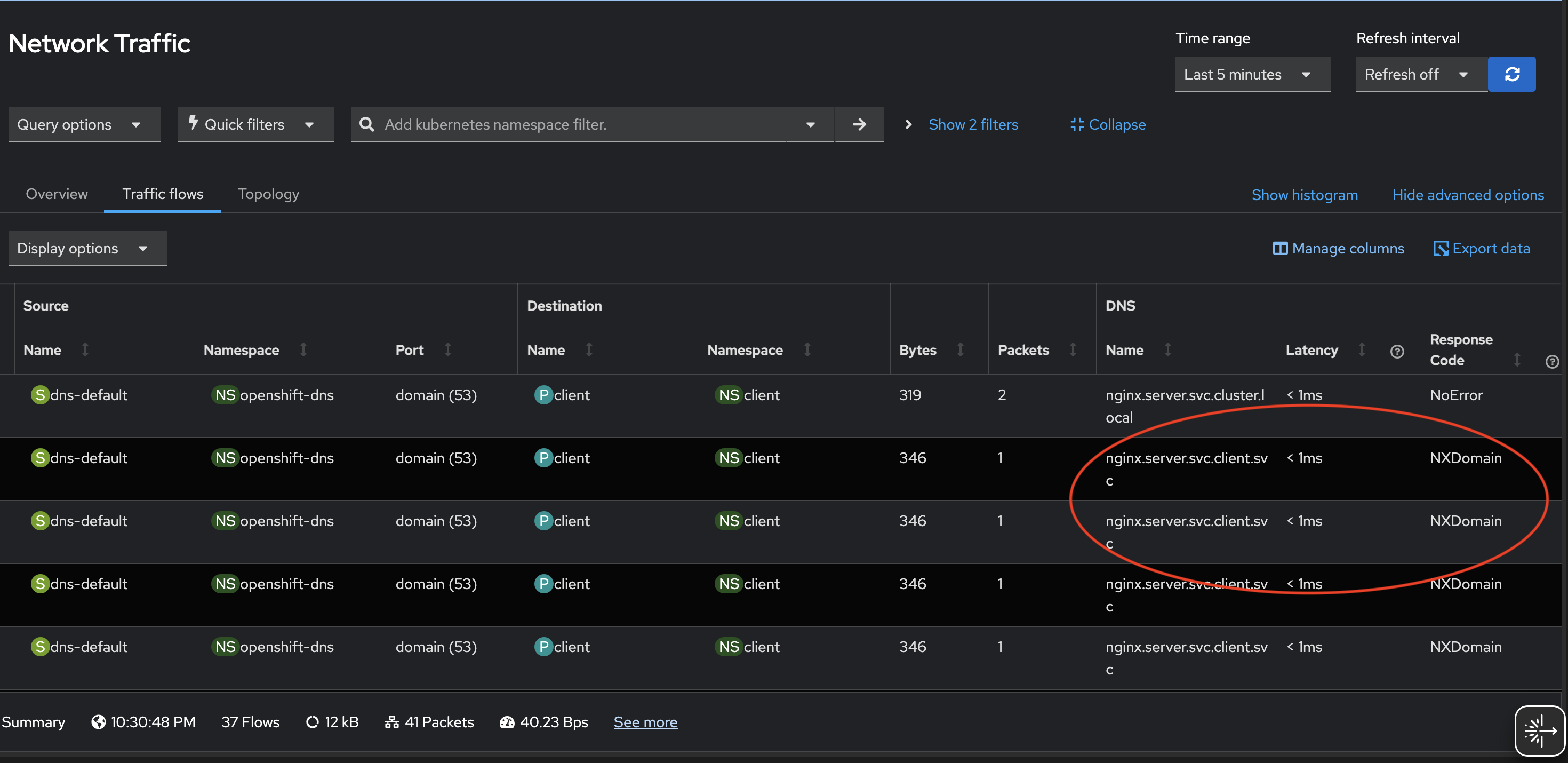

While the requests to fetch 100K object does succeed, can you spot the configuration issues in the above curl command for the nginx requests that its making? Let's look at what we do see in the flowlogs:

We see several requests failing due to NXDOMAIN response code and the ones that succeed have query names nginx.server.svc.cluster.local. Since we configured short DNS name nginx.server.svc in the curl command, the cluster DNS service tries multiple search paths to find answer based on /etc/resolv.conf search directive.

cat /etc/resolv.conf
search server.svc.cluster.local svc.cluster.local cluster.local us-east-2.compute.internal
nameserver 172.30.0.10
options ndots:5

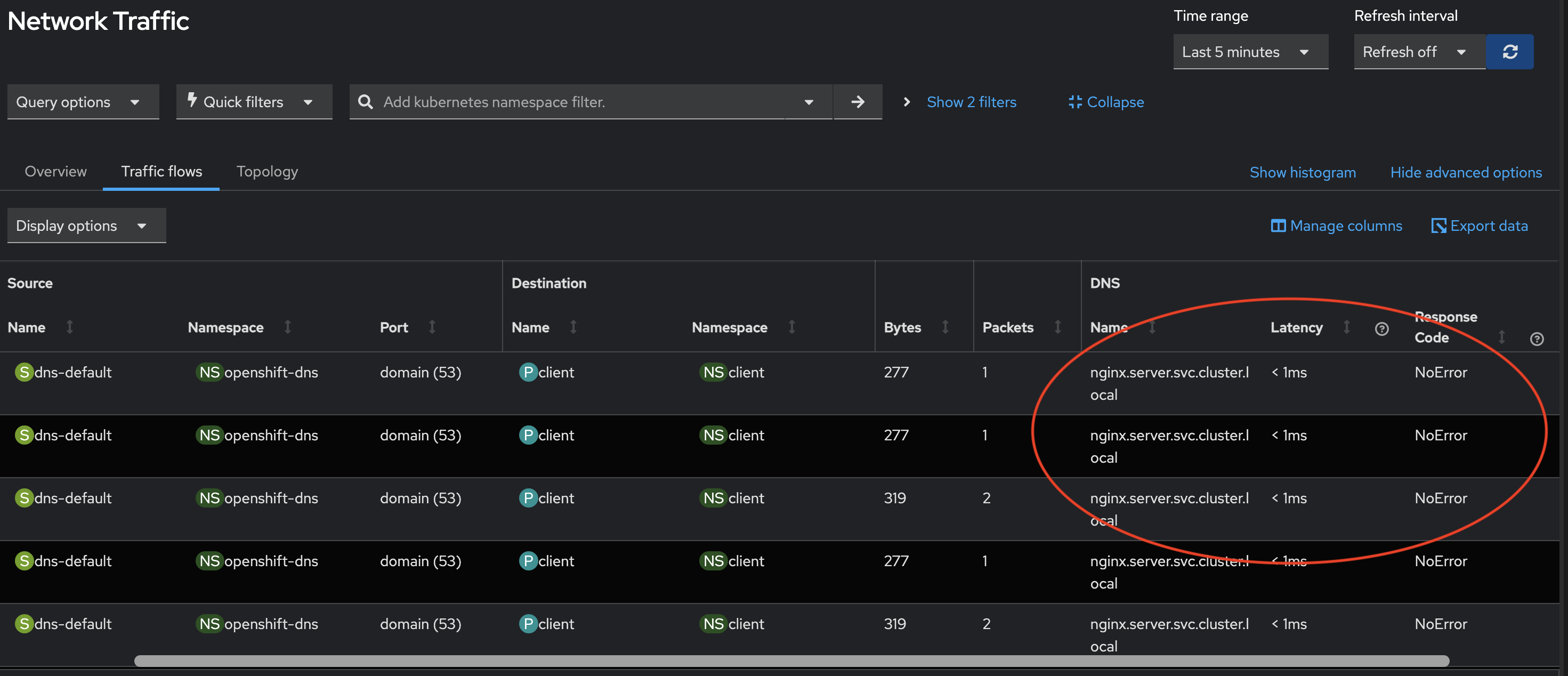

Short DNS names for cluster services cause high load on the cluster DNS service resulting in higher latencies, negative caching (where DNS servers cache negative responses—like NXDOMAIN—until the TTL expires), and increased DNS traffic. This negative impact can be prevented by using Fully Qualified Domain Name (FQDN) in the requests. After updating the hostname to nginx.server.svc.cluster.local. (note the trailing dot) in the curl requests, we are not seeing any NXDOMAINS and reduced unnecessary DNS traffic in our cluster. You can imagine the performance impact if such configuration issue propagated to hundreds of services in your cluster.

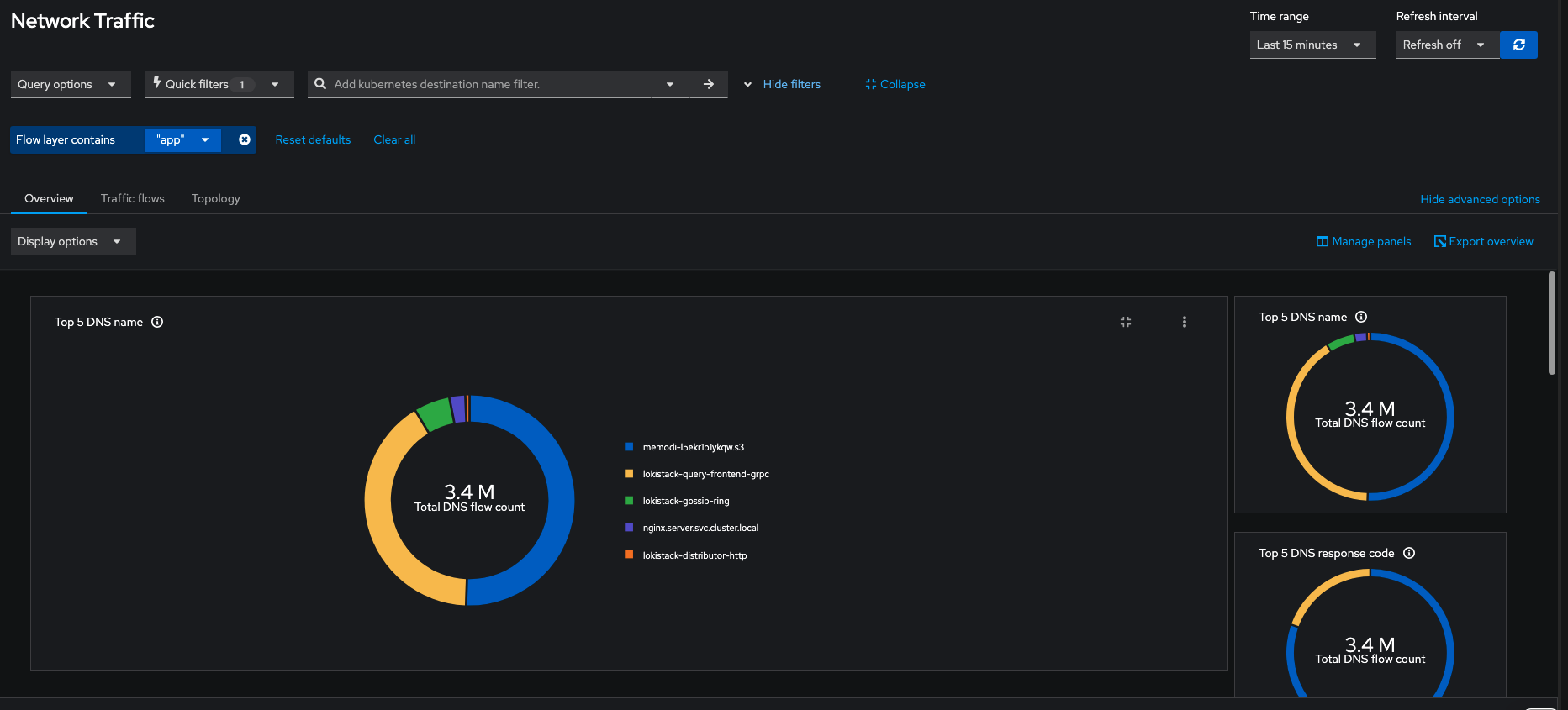

The web console also has new Overview Panels to fetch top 5 DNS names which are queried most:

Note that pod filters are removed in the above image since the DNS traffic is reported by the DNS Service in the cluster. This visualization can identify suspicious domain name activities in your cluster and with table view you can narrow down to the resource where such activities could be coming from.

While DNS name decoding has great use-cases in identifying and troubleshooting issues, it comes with some caveats to favor performance. This feature isn't supported with Prometheus as datastore since storing DNS names as metric values could cause high cardinality. That means, if you're looking to use this feature you must use Loki as your datasource. We're actively working to measure the performance impact and expose DNS names as Prometheus metrics, though.

Captured DNS names will be truncated at 32 bytes to balance the netobserv-ebpf-agent's memory utilization, however this length should cover most practical scenarios.

DNS name tracking currently does not support DNS compression pointers — a space-saving technique defined in (RFC 1035 section 4.1.4). While this is a known limitation, it has minimal practical impact since compression is rarely used in the Question section where queries are tracked. Compression pointers are predominantly used in Answer sections to reference the queried domain name.

To conclude, in combination with other Network Observability features such as built in alerts for overall network health, DNS name tracking will help identify real world issues faster. Before wrapping up, we'd like to acknowledge Amogh Rameshappa Devapura, Mike Fiedler, Joel Takvorian for reviewing this blog.

If you'd like to share feedback or engage with us, feel free to ping us on slack or drop in a discussion.

Thank you for reading!
